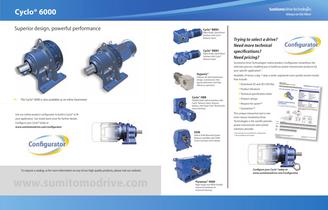

Cyclo® 6000 Superior design, powerful performance Cyclo® BBB4 Right Angle, Spiral Bevel Gearbox with Cyclo® Reducer Input. Cyclo® BBB5 Right Angle, Spiral Bevel Gearbox with Cyclo® Reducer Input. Trying to select a drive? Need more technical specications? Need pricing? Sumitomo Drive Technologies’ online product Congurator streamlines the selection process, enabling you to build our power transmission products for your specic application*. Hyponic® Features all-steel hypoid gear design, maintenance-free grease lubrication and high eciency operation. Available 24 hours a day, 7 days a week,...

Cyclo® 6000 All rotating components are fully hardened, vacuum degassed bearing grade steel, for consistent, reliable performance Wide variety of inputs available, including C-Face, Free-Shaft, Gearmotor and Brakemotor High power density. All reduction contained in compact ring gear housing Rugged, shock-resistant cast iron housing. Optional ductile iron also available Superior seal design using wear sleeves and pressure-rated seals Unique oil sight gauge for simple, visible lubrication indication Unmatched Reliability, Exceptional Performance Cyclo® speed reducers and gearmotors are...

Highly Reliable, Torque Dense Cycloidal Speed Reducers Product Description Sumitomo Cyclo® speed reducers and gearmotors are the premier in-line drives. The revolutionary Cyclo® design provides quiet, efficient and reliable performance exceeding that of involute tooth gear designs. The key to Cyclo®'s matchless performance and reliability is that 67% of the reduction components are in contact at all times, compared to geared designs that use only limited tooth contact. Unlike geared designs, the Cyclo®'s reduction components operate in compression rather than shear, which results in...

CYCLO 6000 Speed Reducers Product Range [Standard Motor and Reducer Combinations) Single Reduction Ratios 3-119 Combinations with 1750 RPM input speed Output Speed input speed Double Reduction Ratios 104 - 7569 Combinations with 1750 RPM input speed Sumitomo Drive Technologies Cyclo 6000 Series

CYCLO® 6000 Speed Reducers FAQs How do I select a Cyclo® speed reducer or gearmotor? Selection is based on the actual horsepower and/or torque requirements at the output shaft. The Cyclo® speed reducer has particularly high efficiencies over a wide range of reduction ratios, which frequently permits the use of reduced input power requirements (smaller HP motor) without sacrificing output shaft torque. The selection procedures in this catalog will guide you in choosing the most efficient reducer for your application. Common Configurations What information do I need to get started in the...

CYCLO® 6000 Speed Reducers Standard Specifications Reducer Internal planetary gear mechanism with trochoidal curved tooth profile. Lubrication: Grease or oil lubricated models available. Seals: Nitrile material, dual lipped, double output seals available. Material: Rugged cast iron or ductile housings. Paint Color: Blue, Munsell color number 6.5PB 3.6/8.2 Installation Location: Indoors (Minimal dust and humidity) Ambient Temperature: 14°~104° F (-10º ~ 40º C) Ambient Humidity: Under 85% Elevation: Under 3,281 ft. (1000 meters) Atmosphere: Ambient Conditions Reduction: Well ventilated...
